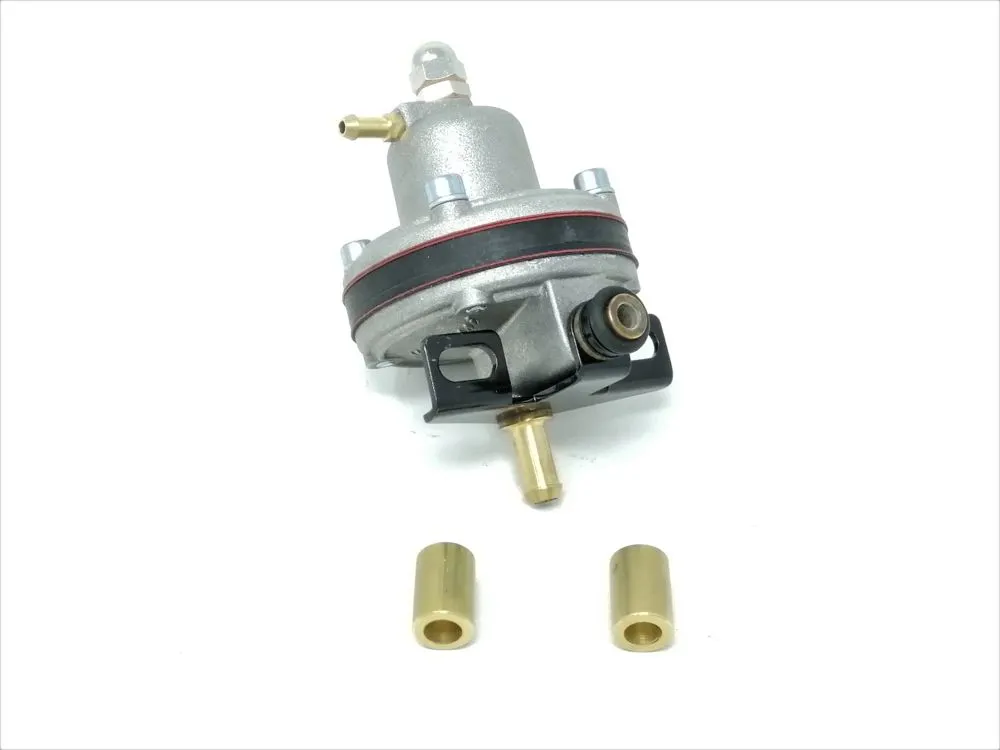

Ford Sierra Cosworth 4x4 rising rate fuel pressure regulator

Two-diaphragm adjustable fuel injection pressure regulator with specific Ford support adaptable for Sierra Cosworth 4x4. Rising rate regulatorits pressure rises progressively by about 1 bar from minimum to maximum from the preset value. Adjustable from 2 bar to 6 bar.

FEATURES:
- Air / fuel ratio 1: 1.5
- 1 push-fit IN connector directly on the flute (two 19 mm spacers are supplied for a perfect adaptation of the position)
- 1 OUT / RETURN connector with 8 mm diameter hose connector
- 5 mm diameter depression and / or boost connector, on 6x1 mm threaded port
- Base pressure adjustable from 1 bar to 8 bar (with suitable pump)

OEM number: 1639278, 6909244

Code: FO4546

150€
